Image Analyzers
Digital Image Analyzer SEO ImageLab for Transmission Electron Microscopes
The main features of the SEO Analyzer ImageLab:
- Input images from the optical system
- Ability to work with previously recorded images
- Conducting research in the following modes and techniques:
- Image Capture
- Calibration of the analyzer's optical system
- Improving and converting images with filters
- Linear and angular measurements

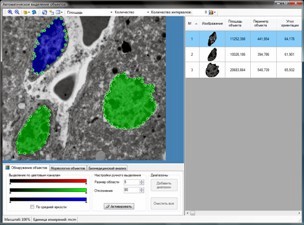

- Automated detection and manual selection of objects
- Measurement of objects (more than 80 characteristics), morphological and phase rapid analysis
- Spectral analysis
- Statistical processing of measurement results, classification of objects, construction of distribution diagrams
- Exporting measurement results
- Protocol research
- Creation and integration of new techniques at the request of the Customer
- Adaptation of methodologies for GOST, ASTM and ASM
The analyzer consists of a digital SEO-SCAN system and SEO software ImageLab EM (registration certificate No. 27335).
SEO-SCAN systems have several modifications:
| For biomedical research | For materials scientists | |||||
| Parameters | SEO-SCAN Bio | SEO-SCAN Bio | SEO-SCAN H Bio | SEO-SCAN Met | SEO-SCAN H Met | SEO-SCAN SH Met |
| Sensor size | 1/1,8" | 2/3" | 2/3" | 2/3" | 1 | 1,2" |
| Resolution | 1628 х 1236, 14 bit | 1392 х 1040, 12 bit | 2456 х 2058, 12 bit | 1000 х 1000, 16 bit | 1920 х 1080, 16 bit | 2060 х 2060, 16 bit |
| Pixel size | 4,4 х 4,4 | 6,45 х 6,45 | 3,45 х 3,45 | 7,4 х 7,4 | 7,4 х 7,4 | 7,4 х 7,4 |
| Number of frames per second | 14 | 16 | 9 | 60 | 31 | 16 |
| Exposure time max | Up to 60 s | Up to 60 s | Up to 10 s | Up to 60 s | Up to 60 s | Up to 60 s |
| Interface with a PC | IEEE 1394 | USB 2.0 or IEEE 1394 | IEEE 1394 | IEEE 1394 | IEEE 1394 | IEEE 1394 |

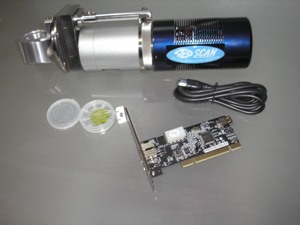

The delivery package for SEO-SCAN systems:
- block image capture based on a CCD camera
- IEEE 1394 FireWire controller (for FW series)
- cable for connection to PC, software SEO Capture
- software SEO ImageLab (about the state registration number 27335)
- YAG–screen
- photo adapter
- scintillator input mechanism (for a specific TEM model)
- * the control computer is supplied by agreement

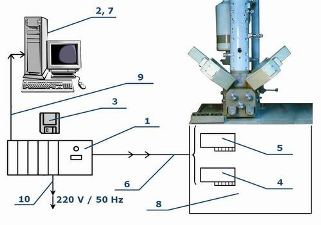

Digital Image Output and Recording System SEO-DISS for SEM
The system of PC image registration SEO DISS is connected and operated with REM scanning electron microscopes, STEM scanning electron microscopes and EMPA electron microprobe microprobe of various manufacturers, all functions of electron-optical devices are preserved. Only with the digital recording of the image, the internal raster generator is turned off and the beam control is transmitted to SEO-DISS. The built-in PC menu includes a microscope for external beam control, generates a trip voltage in X and Y, and digitally formats analog image signals read from the preamplifiers.
Specifications:
- Scanning:
- from 3 μs to 200 ms per pixel
- stepwise or continuously adjustable
- Image size:
- from 250 x 250 pixels to 2000 x 2000 pixels
- possibility of increasing up to 4000 x 4000 pixels
- line and frame amplitude ±10 V
- Small Field Mode:
- frame sizes 64 x 64 pixels; 128 x 128 pixels 256 x 256 pixels with the ability to change the scan parameters
- Image averaging functions:
- To reduce the noise level, interframe interpolation is used with the ability to accumulate up to 16 frames or up to 100 scans at a point
- Switching and preprocessing unit:
- input voltage ±1 V
- possibility of external deactivation of sweeps
- the ability to adjust the brightness and contrast of images
Image Analyzers SEO ImageLab for Light Microscope
SEO ImageLab is an image analyzer designed to work in research, diagnostic and production purposes in various fields: medicine, biology, veterinary science, geology, materials science, metallurgy, etc.
Analyzers are supplied with a microscope or microscopes of customers are used.
By function, analyzers can share:

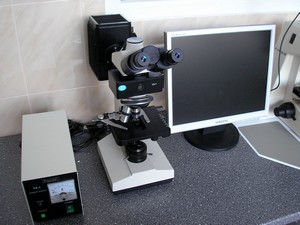

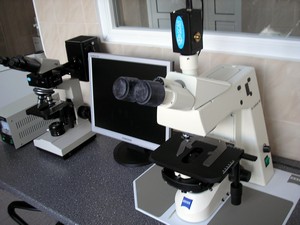

For biomedical research on lumen and reflection
For micro- and biochemical studies

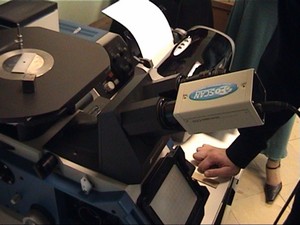

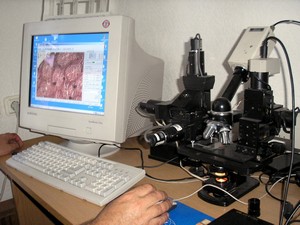

For materials scientists and metallographic studies

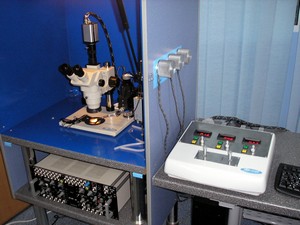

For luminescent and "Patch Clamp" studies

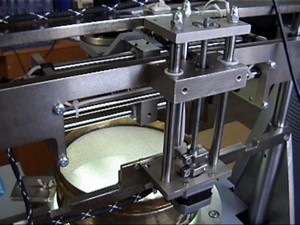

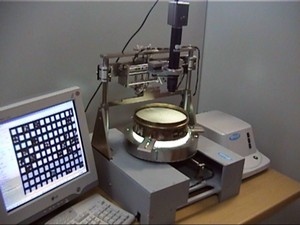

For scanning and granulometry systems

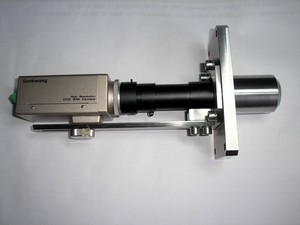

For specialized systems in the field of "Machine Vision"
The analyzer is equipped with digital system SEO-SCAN, which provides recording of color and black-and-white images with high and ultra-high resolution.
Image analysis is carried out using the software SEO ImageLab (registration certificate No. 27335 dated January 21, 2009)
When using a customer's microscope, the digital SEO-SCAN system is installed on any type of light or electron microscope using specialized photo adapters.
Digital systems are adapted to any light microscopes at the request of the customer and are supplied as follows:
- block image capture based on a digital color camera
- photoadapter and docking flanges for a specific microscope model
- FireWire controller (for FW series)
- software SEO Capture control block image capture
- software for image processing and analysis SEO ImageLab (about state registration number 27335)
- connecting harnesses
- microscope, operator's workplace and control computer in agreement with the Customer
| Technical specification of digital systems SEO-SCAN for light microscopes | ||||||||
| SEO-SCAN 1USB | SEO-SCAN 2USB | SEO-SCAN 3USB | SEO-SCAN 4USB | SEO-SCAN 5FW | SEO-SCAN 1.1FW | SEO-SCAN 1.2FW | SEO-SCAN 1.3FW | |
| Type of matrix/td> | 1/2" CMOS | 1/3" CMOS | 1/2" CMOS | 1/2" CMOS with built-in LCD monitor | 1/2,5" CMOS | 1/2" ССD | 1/1,8" CMOS CCD | 2/3" CCD |
| Number of pixels | 1280 × 1024 | 1600 × 1200 | 2560 × 1920 | 2048 × 1536 | 2592 × 1944 | 1392 × 1024 (trebling) | 1628 × 1236 (trebling) | 2456 × 2058 (trebling) |
| The pixel size | 5,2 × 5,2 μm | 2,8 × 2,8 μm | 2,2 × 2,2 μm | 3,2 × 3,2 μm | 2,2 × 2,2 μm | 4,65 × 4,65 μm | 4,4 × 4,4 μm | 3,45 × 3,45 μm |
| Pixel resolution | 8 bit | 8 bit | 8 bit | 8 бbit | 12 bit | 8 bit | 8-14 bit | 12 bit |
| The size of the photosensitive region | 6,66 × 5,32 mm | 4,48 × 3,36 mm/td> | 5,63 × 4,22 mm | 8,0 × 4,9 mm | 5,70 × 4,28 mm | 6,4 × 4,8 mm | 7,0 × 5,2 mm | 8,5 × 7,1 mm |
| Frame rate | 25 frames/s | 18 frames/s | 6 frames/s | 28 frames/s | 7,5 frames/s | 17,7 frames/s | 14 frames/s | 7,5 frames/s |
| Shutter type | Rolling | Rolling | Rolling | Software-controlled | 10 μs – 32 s | 20 μs - 67 s | 20 μs - 67 s | 20 μs – 10 s |
| Interface with PC | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0; TV-out; NTSC/PAL | IEEE-1394.a | IEEE-1394.a | IEEE-1394.a | IEEE-1394.a |
| Additional properties | Software control: gain, exposure, white balance, frame rate; JPEG, BMP, AVI recording formats | Control: brightness, contrast, color balance, resolution, ZOOM. Format JPEG, BMP, MPEG-4 | Full program control of parameters; JPEG, BMP formats | Full program control | Full program control | Full program control | ||
